· Enhance shallow detection capabilities: realize basically no blind area detection in ultra-shallow layers；
· High resolution: vertical resolution and lateral resolution are extremely high;
· Strong anti-interference: through high current pressure noise, the use of shielded coil is suitable for strong interference areas such as cities and high-voltage lines;
· Stable coil structure: no on-site adjustment, good seismic resistance;
· Data processing: Adopted the Alpha supercomputing inversion cloud platform, which has the characteristics of semi-automatic geological model generation, streamlined and easy adjustment of parameters, clear stratification of production status, easy to judge abnormal focus, extremely fast inversion speed, and convenient upgrade and maintenance.
· It has a joint inversion data interface with the TETSP tunnel seismic advance prediction system;

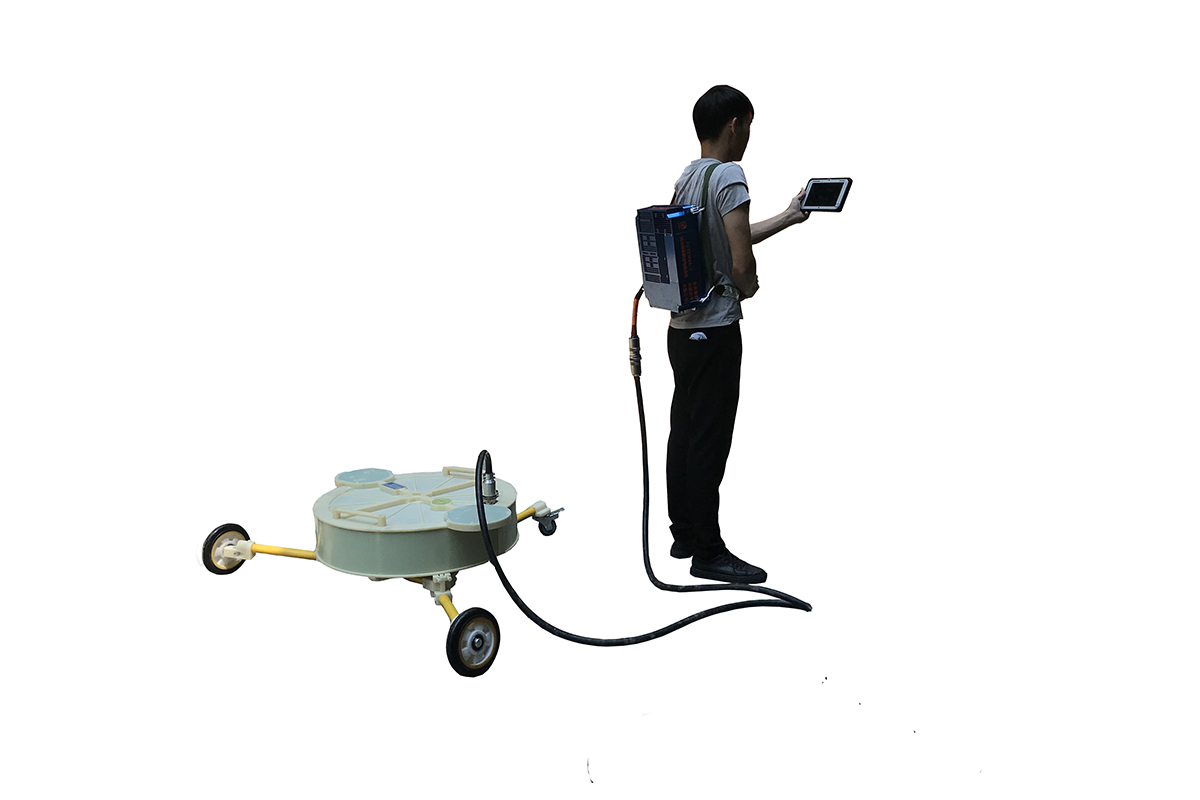

· Lightweight: coil trailer trolley, host battery integration and only two people can construct.

· A/D: 24 bits;
· Real-time dynamic range: 150dB;
· Data acquisition mode: spot measurement mode;
· Sample rate: 1.25 or 2.5MHz;
· Sampling interval: 800 or 400ns;
· Host: transmitter system and battery integrated host;
· Acquisition terminal communication mode: USB3.0;
· Power supply mode: lithium battery power supply;
· Transmit current: 40A;
· Transmission frequency: 50, 25, 12.5, 6.25, 3.125, 0.78125, 0.390625Hz (optional);
· Turn-off time: less than 40μs (coil 0.7m diameter);
· Standard coil: 0.7m shielded coil;
· Detection depth: 100 meters;
· Working temperature: -30°C60°C, maximum relative humidity of 95%;
· Host and coil: single cable connection;
· Data processing: Alpha quasi-two-dimensional supercomputing fast inversion system;
